1.unity part

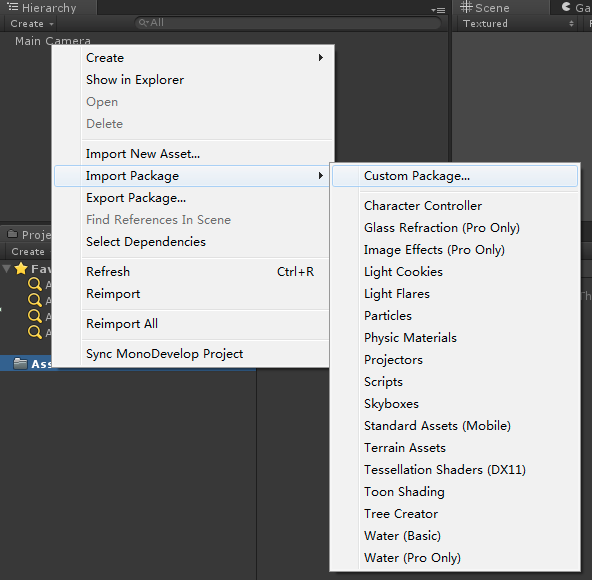

1.1. Import SDK resource

 Downloading “QuickSDK For Unity 3D”version SDK pakage from download center on offical web. ImportQuickSDKForUnity.unitypakage file in Unity project ( if it fail to Import, please confirm whether the file is under non-Chinese path), refer to following pic:



1.2. Call QuickSDK interface

call QuickSDK.cs class API, implement callback methods

Note: Adding quicksdk named space(using quicksdk;) at first, obtain QuickSDK class example by QuickSDK.genInstance() method.

1.2.１.  Set monitor/set listener(Necessarily)

API：void setListener(QuickSDKListener quickSDKListener )

Example：Calling QuickSDK.getInstance().setListener function, and transferring the parameters to instantiated QuickSDKListener class object. It is convenient to monitor callback that to set setListener function as soon as possible.

   Refer to following code to realized callback：

public class EventHandle : QuickSDKListener {
    void Start () {
        QuickSDK.getInstance().setListener (this);
    }
    public override void onInitSuccess(){
        //   initialize success callback
    }
    public override void onInitFailed(ErrorMsg errMsg){
        //   initialize fail callback
    }
    public override void onLoginSuccess (UserInfo userInfo){
        //   login success callback
    }
    public override void onLoginFailed (ErrorMsg errMsg){
        //   login fail callback
        // if   there’s no login button in game,you shall call login API again here.
    }
    public override void onSwitchAccountSuccess (UserInfo userInfo){
        //   switch account success callback
        //Some   markets have switch account function in floating window, the callback means   switch succeed.Game client need to wipe the current game role information   out.Once return to choosing service interface after switch account successed   Please do not call login API again.
    }
    public override void onLogoutSuccess (){
        //log   out success callback
        // Game   client shall wipe current role information,return to login interface,and automatically   call login API once.
    }
    public override void onPaySuccess (PayResult payResult){
        // payment   succeed callback
        //since   some markets payment notification is not that accurate, the client   notification is just for reference, game client pay the payable goods should   according to server notification not client notification.
    }
    public override void onPayCancel (PayResult payResult){
        //   payment cancel callback
    }
    public override void onPayFailed (PayResult payResult){
        //payment   fail callback
    }
    public override void onExitSuccess (){
        // SDK   exit succeed callback
        // call   QuickSDK.getInstance().exitGame()function to exit game, quit course. Please   do not use Application.Quit()function ,in order to avoid conflict with   market.
    }
}



1.2.２. init (necessarily)
API：void init();
Function： call the init of market SDK
Example：QuickSDK.getInstance().init();

1.2.3. Login (necessarily)

API：void login();

Function： call the login of market SDK

Example：QuickSDK.getInstance().login();



1.2.4. Uploading role information(necessarily)

Note: It is necessary to call upload role information API when creating role, entering game, or updating role.

1.2.4.1. Uploading while creating role

API：void createRole(GameRoleInfo gameRoleInfo);

Function： Uploading role information to market SDK while creating role

Example:

GameRoleInfo gameRoleInfo = new GameRoleInfo();
gameRoleInfo.gameRoleBalance = "0";
gameRoleInfo.gameRoleID = "000001";
gameRoleInfo.gameRoleLevel = "1";
gameRoleInfo.gameRoleName = "real rich";
gameRoleInfo.partyName = "Tong Ji party";
gameRoleInfo.serverID = "1";
gameRoleInfo.serverName = "Mars server";
gameRoleInfo.vipLevel = "1";
gameRoleInfo.roleCreateTime = "roleCreateTime";//UC，dangle.com and 1881 must uploading, the value is 10digit   timestamp渠道必传，值为10位数时间戳
gameRoleInfo.gameRoleGender = "male ";//360.com   market parameter
gameRoleInfo.gameRolePower ="38";//360.com   market parameter，set role   power level，it must be an integer string
gameRoleInfo.partyId ="1100";// 360.com   market parameter，set party ID，it must be an integer string
gameRoleInfo.professionId = "11";//360.com   market parameter，set role   profession id，it must be an integer string

gameRoleInfo.profession = "Master";//360.com   market parameter，set role   profession name
gameRoleInfo.partyRoleId = "1";//360.com   market parameter, set party role id
gameRoleInfo.partyRoleName = "Party   leader"; //360.com parameter， set role name in party
gameRoleInfo.friendlist = "无";//360.com parameter，set   friend relationship list, format for reference：http://open.quicksdk.net/help/detail/aid/190
QuickSDK.getInstance ().createRole(gameRoleInfo);//Creating   role

1.2.4.2. Uploading while accessing game

API：void enterGame(GameRoleInfo gameRoleInfo);

Function： After login, uploading role information to market SDK while entering game.

Example：QuickSDK.getInstance().enterGame(gameRoleInfo);

1.2.4.3.  Uploading when role updating

API：void updateRole(GameRoleInfo gameRoleInfo);

Function： Uploading role information to market SDK while role updating.

Example：QuickSDK.getInstance().updateRole(gameRoleInfo);

                                                 GameRoleInfo

string	type	instruction
serverID	String	Server ID（value is string）
serverName	String	Server name
gameRoleName	String	Role name
gameRoleID	String	Role ID
gameRoleBalance	String	Role account balance
vipLevel	String	VIP level(value is string)
gameRoleLevel	String	Role level(value is string)
partyName	String	Party/association
roleCreateTime	String	Role create time（10 digits timestamp）
gameRoleGender	String	Role gender(only for 360.com)
gameRolePower	String	Role power(only for 360.com)
partyId	String	Party id(only for 360.com)
professionId	String	Role profession id(only for 360.com)
profession	String	Role profession name(only for 360.com)
partyRoleId	String	Party role id(only for 360.com)
partyRoleName	String	Party role name(only for 360.com)
friendlist	String	Friends list(only for 360.com)

Access instruction：

1)  Uploading role information while creating role, entering game and updating role.

2) All fields in GameRoleInfo can not transfer null, if the game has no field that it will send a default or empty string;

3)  More specific instruction of updating role information on 360.com, please refer to：http://open.quicksdk.net/help/detail/aid/190



1.2.5.  Fixed payment(necessarily)

API：void pay(OrderInfo orderInfo, GameRoleInfo gameRoleInfo);

Function： call market SDK payment API

Example:

OrderInfo orderInfo = new OrderInfo();
GameRoleInfo gameRoleInfo = new GameRoleInfo();
orderInfo.goodsID = "1";
orderInfo.goodsName = "gouyu";
orderInfo.amount = 1;
orderInfo.count = 10;
orderInfo.cpOrderID = "cporderidzzw";
orderInfo.extrasParams = "extparma";
orderInfo.price = 0.1f;  //（Necessarily for IOS, if only for android there’s no   need to transfer）
oorderInfo.goodsDesc = "10gouyu";  //（Necessarily for IOS, if it only for android there’s no   need to transfer）
gameRoleInfo.gameRoleBalance = "0";
gameRoleInfo.gameRoleID = "000001";
gameRoleInfo.gameRoleLevel = "1";
gameRoleInfo.gameRoleName = "Real rich";
gameRoleInfo.partyName = "Tong Ji party";
gameRoleInfo.serverID = "1";
gameRoleInfo.serverName = "Mars server";
gameRoleInfo.vipLevel = "1";
gameRoleInfo.roleCreateTime = "roleCreateTime";
QuickSDK.getInstance ().pay (orderInfo, gameRoleInfo);

                                                OrderInfo

string	type	instruction
goodsID	String	Goods id, to identify the   purchased goods
goodsName	String	Goods name
amount	double	Payment amount
count	int	Purchase quantity
cpOrderID	String	Product order（game client   order number）
extrasParams	String	Extra parameter
price	float	Unit price （only for ios）
quantifier	String	Quantifier，“yuanbao”means“unit”，“Month card”means“piece”（only for ios）
goodsDesc	String	Goods describe（only for ios）
callbackUrl	String	Payment callback notification address

Access requirement： in order to uniformly show all kinds of market goods name, transfer the order value in following pattern:

      Example 1：                           Example 2：

amount:6.0                        amount:10.0

count:60                           count:1

goodsName: yuanbao                  goodsName: month card

goodsName: transfer goods name in “yuanbao”,”diamond”, ”month card” pattern without quantity.

1.2.6. log out account (necessarily)

API：void logout();

Function： call market SDK log out

Example ：QuickSDK.getInstance().logout();

1.2.7  Exit(necessarily)

API：void exit();

Function： Exiting game. To confirm whether the market there is exit Dialog by checking isChannelHasExitDialog, if there is exit dialog, call QuickSDK exit API; If there’s no exit dialog ,call game client exit dialog, click “Sure” button,then call QuickSDK exit API.

Example:

if(QuickSDK.getInstance().isChannelHasExitDialog ()){
    QuickSDK.getInstance().exit();
} else {
    //mExitDialogCanvas.SetActive(true);
    // call game client exit dialog   ,click “sure”button,then call QuickSDK.getInstance().exit();
}

1.3. Expansion API

1.3.1.  Obtain market type

API：int channelType();

Function： Obtain market serial number, distinguish market by it.

1.3.2. Obtain user ID

API：string userId();

Funciton：Obtain user ID

1.3.3. Obtain configuration parameter value

API：string getConfigValue (string  key);

Function：Obtain game client user-defined parameter, which can configure in QuickSDK background

1.3.4. Support appoint method ?

API：bool isFunctionSupported(FuncType type);

Function：Testing if there is corresponding function

Instruction：  There are some functions such as open/close floating toolbar, enter in user center, enter forum in some SDK. If this method support this function , call it. Defination of appoint method refer to FuncType of QuickSDKImp.cs

1.3.5. call appoint method

API：void callFunction (FuncType type);

Callback information interface: void onSuccess(string infos)

Function: There are some functions such as open/close floating toolbar, enter in user center, enter forum in some SDK. This method can call these functions, details refer to FuncType of QuickSDKImp.cs

Description: Infos is the returned json string

Case: Real name authentication (called after successful login)

   OnSuccess will return the encapsulated json entity; Uid (representing user id), age (representing age, which defaults to - 1 if the market does not return a real name), realName (whether the market has a real name: true represents a real name, false represents an unreal name; if the market does not return a real name, which defaults to false), resumeGame (whether the game can continue after the market real name authentication fails: true represents yes, false represents no; if the market does not return a real name, it defaults to true), Other (reserved field, if the market does not return a string that defaults to ""); FunctionType (indicates the function to be called. The value 105 of FuncType.QUICK_SDK_FUNC_TYPE_REAL_NAME_REGISTER indicates real name authentication):

public void onSuccess(string infos)
        {
            onSucceed(infos);
        }
QuickSDK.getInstance().callFunction(FuncType.QUICK_SDK_FUNC_TYPE_REAL_NAME_REGISTER);
For example, the result form of the callback infos of the test market is:
{"uid":"1178471402501092","age":20,"realName":true,"resumeGame":true,"other":"","FunctionType":105}

1.3.6 Call QuickSDK Customer Service Plug-in
API: void enterYunKeFuCenter (GameRoleInfo gameRoleInfo);
Function: First, you need to add QuickSDKCustomService plug-in to the channel configuration interface, then the parent package calls this interface, and then you can perform the channel package operation. After that, the interface can be used to lift the customer service normally

1.3.7 Call market SDK sharing function (Android only)

ShareInfo Class Field Description:

string	type	instruction
titlestring	string	Share Title
content	string	Share content
imgPath	string	Local address for sharing pictures
imgUrl	string	Share picture network address
url	string	Share Link
type	string	Sharing type
shareTo	string	Where to share
extenal	string	Additional remarks

API: void callSDKShare (ShareInfo shareInfo);
Function: Transfer the shared objects specified in QuickSDK (the parameters of the objects should be transferred in after negotiation with the channel). After the channel package is printed, the sharing function of the corresponding channel can be suspended;

1.3.8 Adding the Acquire DeviceId Interface
API: getDeviceId()
Function: Get the DeviceId of the device

２. android

２.1.  Import Android project

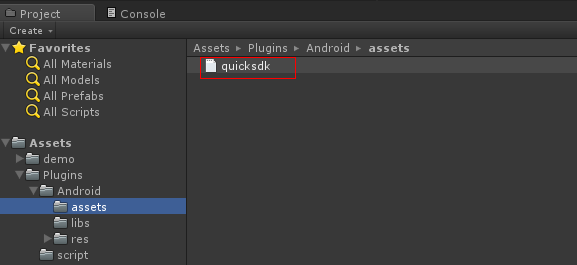

Open quicksdk. XML, modify quicksdk. The parameters for their game in the XML file(Please double-click directly in Unity to open, to prevent file format changes from reporting product errors)





2.2 Android access example

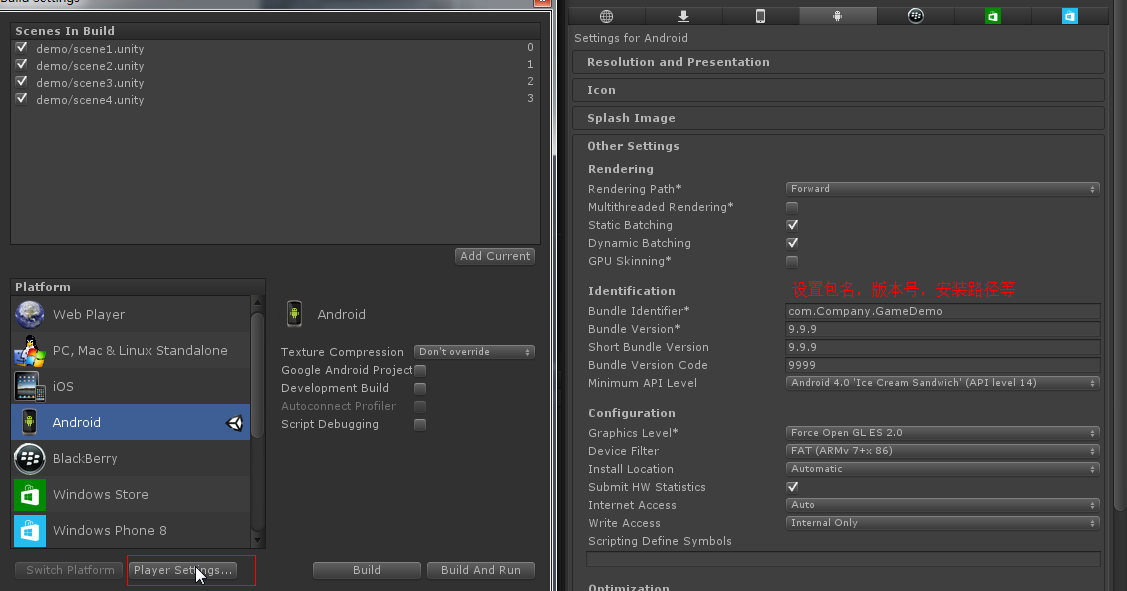

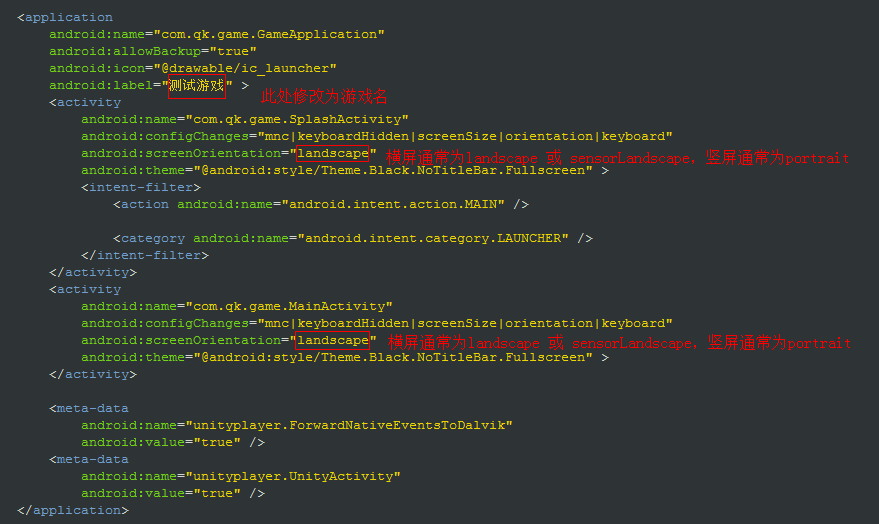

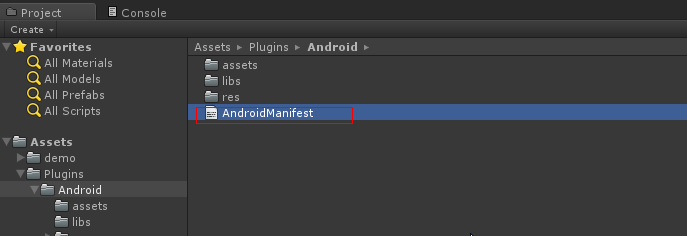

Open the AndroidManifest.xml file, modify the game name, horizontal and vertical screen settings

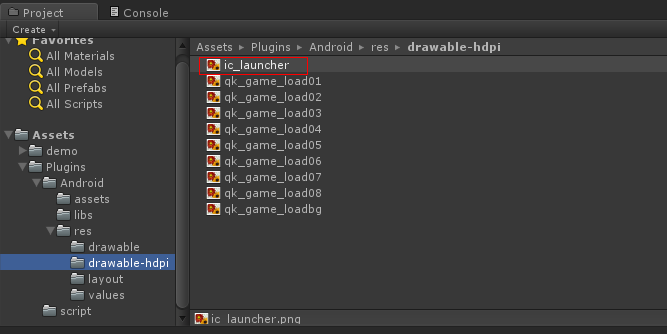

２.3. Set game icon picture

Change the ic_  launcher.png image is replaced with the game's own icon image



２.4. Packing example

Copying the led out myGame.jar pakage and AndroidManfest.xml file to Unity project.

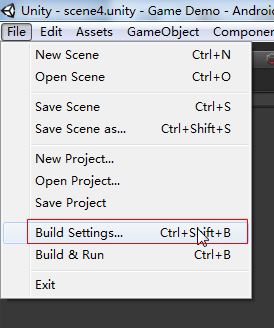

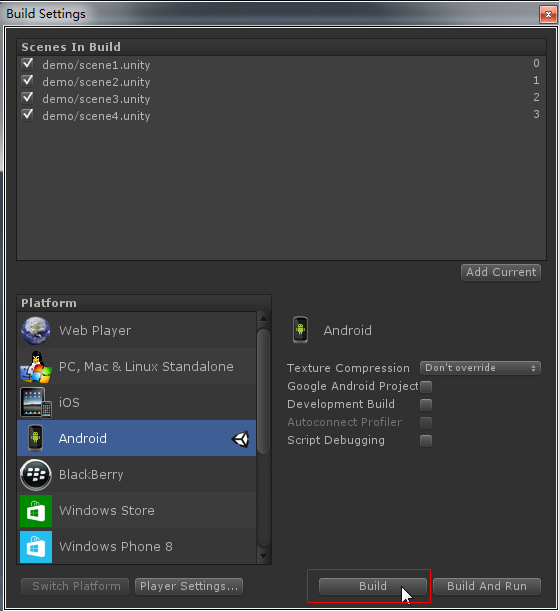

Creating APK refer to following method, the creating APK is game orgin package.

Complement.

３. iOS

Export xcode project and open it by unity.

３.1.  The exporting switch screen setting

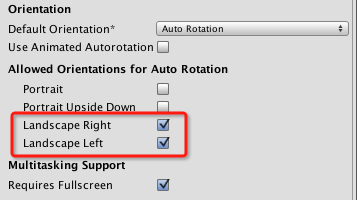

３.1.1. Landscape game

Export u3d setting as followed, u3d setting will control the switch of game.



３.1.2. Portrait game

 Choosing portrait in u3d to export xcode

３.2. Adding quicksdk database

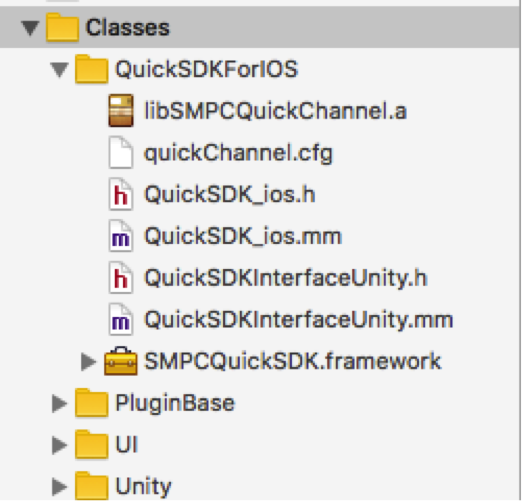

Adding QuickSDKForIOS in project

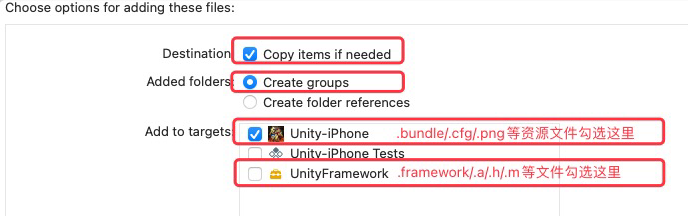

Including UnityFramework dynamic library Special instructions:
TargetMembership of files such as. a/. framework/. h/. m needs to be associated with UnityFramework;
TargetMembership and other resource files such as. bundle/. cfg/. png need to be associated with Unity iPhone;
TargetMembership of dynamic libraries such as. framework must be associated with UnityFramework and Unity-iPhone at the same time.
At present, the QuickSDK basic library is a static library, and TargetMembership cannot be associated with UnityFramework and Unity-iPhone at the same time

３.3. Adding project configuration

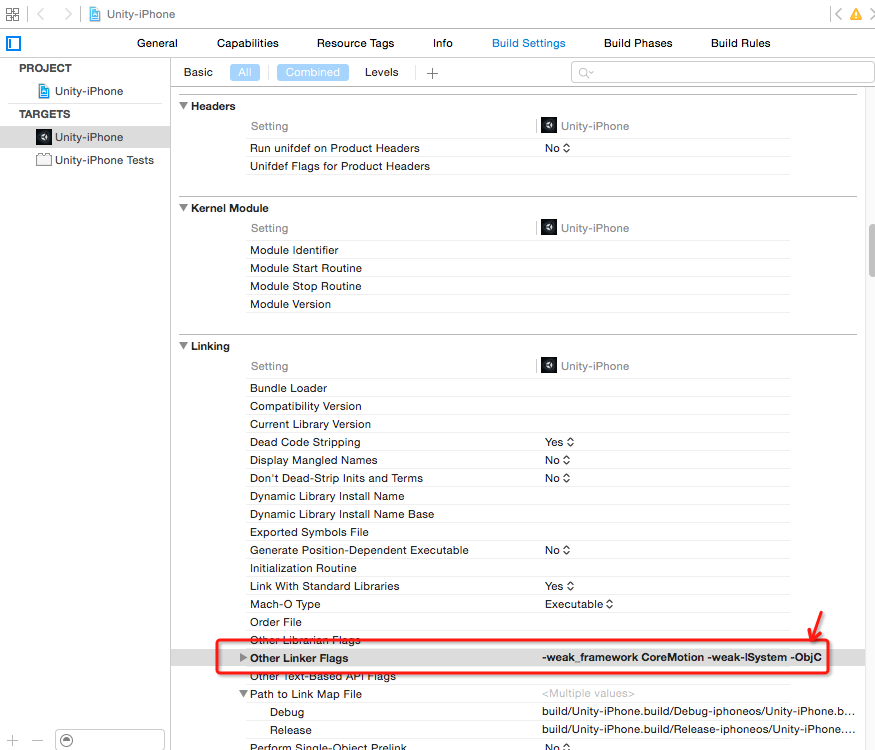

  Adding linking parameters of lib, opening project configuration, Finding Linking Other Linker Flags in Linking of project configuration, adding parameter: -ObjC

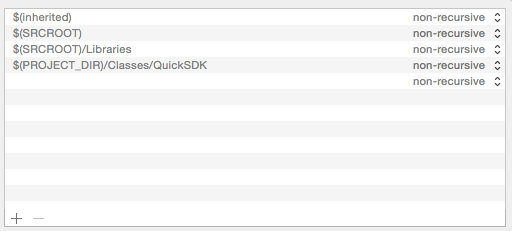

Build Settings->Search Paths-> wipe ”” out of all paths in Library Search Paths

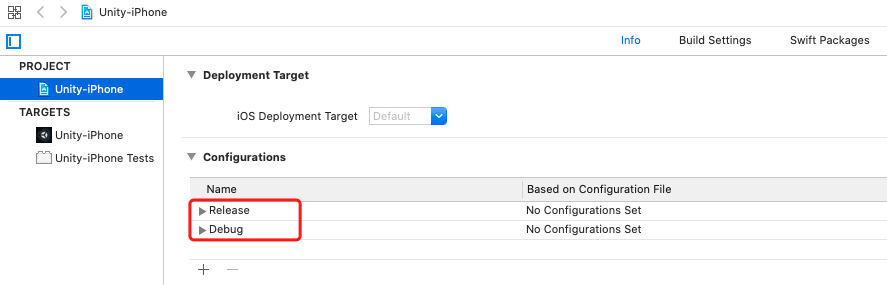

PROJECT ->Info ->Configurations Only Release and Debug are reserved

The project info.plist file is configured to allow access to the http network

３.4. Adding method call in UnityAppController.mm

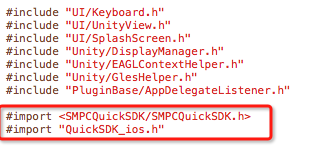

Importing heading file : #import and #import "QuickSDK_ios.h"

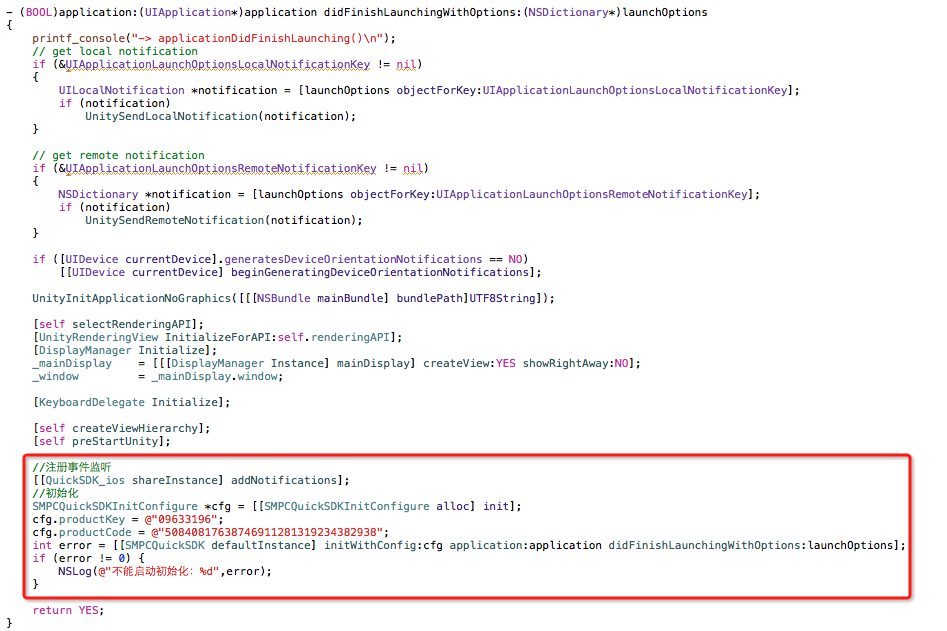

Adding initialized method call in UnityAppController.mm



Note 1: The initialization interface needs to be called after setting the application window
Note 2: ProductCode and ProductKey should be replaced by the game's own master package parameters!!!

Is to modify the parameters in the configuration file quickChannel.cfg.

3.5 Unity compatible settings

Below iOS Unity5. X, if a crash occurs during callback, please send the QuickSDK_ In ios. mm - (void) sendU3dMessage: (NSString *) messageName: (NSDictionary *) dict Modify:
appid:29

Open:

//        char *gameObjectNameCStr = (char *)malloc(100);

//        strcpy(gameObjectNameCStr, [_gameObjectName UTF8String]);

//        char *messageNameCStr = (char *)malloc(100);

//        strcpy(messageNameCStr, [messageName UTF8String]);

//        char *jsonStringCStr = (char *)malloc(1000);

//        strcpy(jsonStringCStr, [jsonString UTF8String]);

//        UnitySendMessage(gameObjectNameCStr, messageNameCStr, jsonStringCStr);

Close：

UnitySendMessage([_gameObjectName UTF8String], [messageName UTF8String], [jsonString UTF8String]);

Open:

//        char *gameObjectNameCStr = (char *)malloc(100);

//        strcpy(gameObjectNameCStr, [_gameObjectName UTF8String]);

//        char *messageNameCStr = (char *)malloc(100);

//        strcpy(messageNameCStr, [messageName UTF8String]);

//        UnitySendMessage(gameObjectNameCStr, messageNameCStr, "");

Close：

UnitySendMessage([_gameObjectName UTF8String], [messageName UTF8String], "");

Call the registered event listener and the initialization method in didFinishLauchingWithOptions, where the productKey and productCode are obtained by the QuickSDK background.
So far, the master package project has been completed. You can compile and run it and use the quick packaging tool to generate other channel packages. For the use of the packaging tool, please refer to the instructions for the packaging tool.
Note: If the packaged channel ipa runs abnormally on the mobile phone, you can use the debugging project generated by the tool to debug. The debugging project name is game project name channel number.xcodeproj, and the path is in the same directory of the game project.
